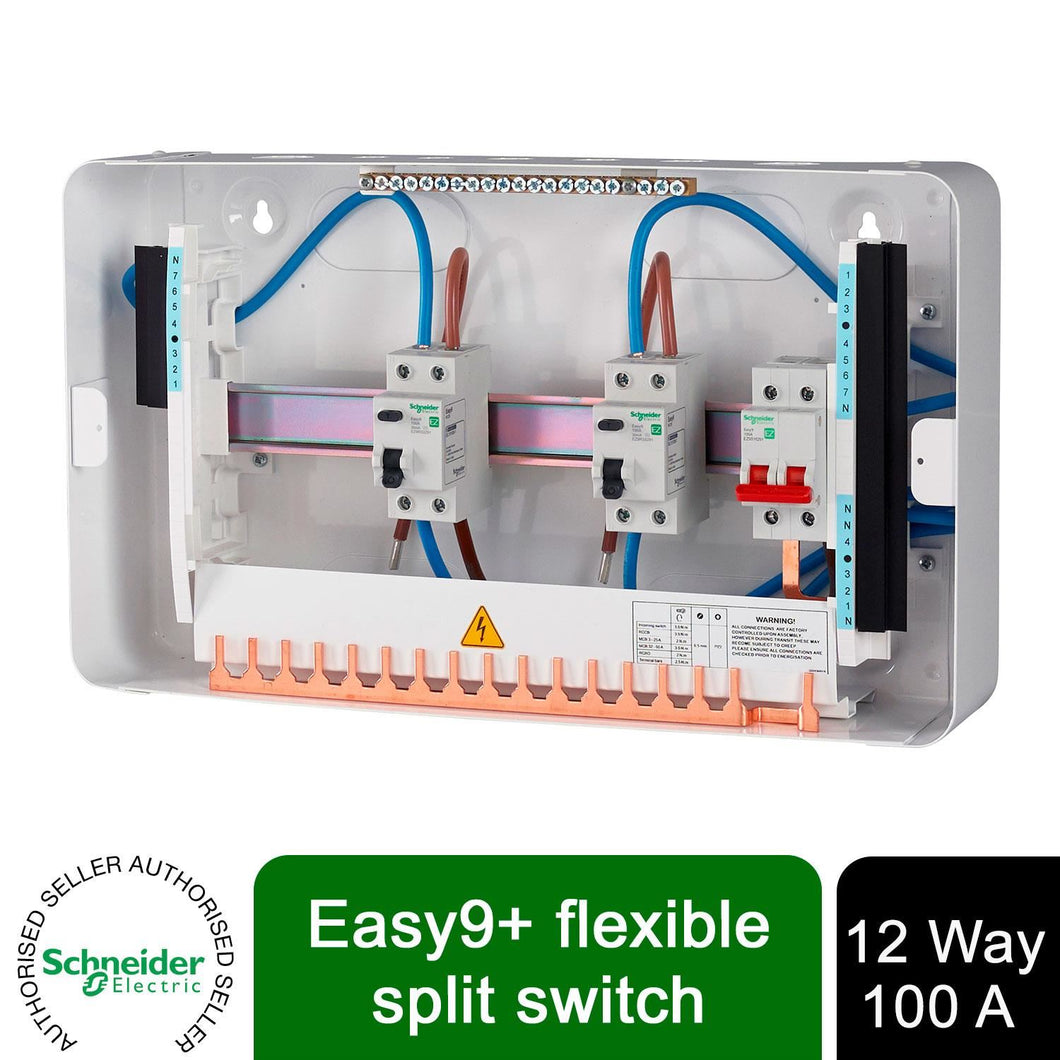

Schneider Electric Easy9+ Flexible Split 12 way 2x100A RCD Metal Switch
Schneider Electric Easy9+ flexible split 12 way 100A switch is BSEN61439 -3 Compliant, It has 100A Main Switch Disconnector and flexible split load configuration option. It ensures mainstream applications can be catered for with a single consumer unit. With rigid metal DIN rail, it avoids flexing and is raised for cabling flexibility.
Features:
- Supplied with 2 x 100A 30mA RCDs and 1 x 100A DP isolator
- Multiple cable entry points and rear knock out slots
- Fixing holes with level adjustment
- Securely fixed DIN rail
- Earth terminal block and neutral terminal blocks fitted as standard
- Secure busbar shield
- Reversible door
- Complies with Amendment 3 regulations
Specifications:
- Board Configuration: Configurable
- Colour: White
- Current Rating: 100A
- Door: Type Bottom Hinged
- Incoming Device: 100A Isolator
- Mounting: Surface
- Number of Modules: 18
- Number of Outgoing Ways: 12
- Product Range: Easy9+
- Surge Protection Fitted: No
- Surge Protection Ready: No
- Voltage Rating: 230V
Package Includes: Schneider Electric Easy9 Flexible Consumer Unit with 12 Way 1x Main Switch & 2x Residual Current Device
