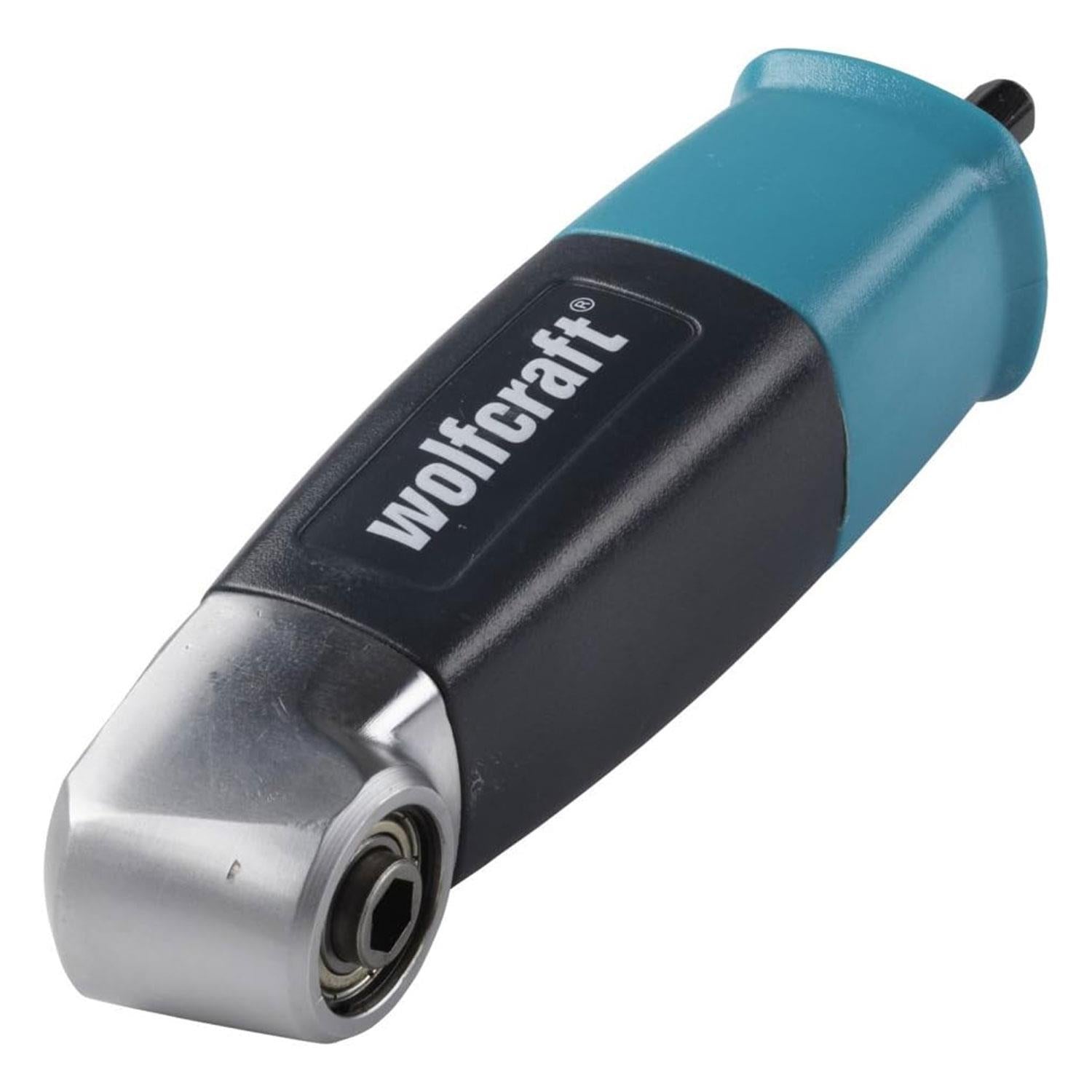

wolfcraft Angular Gear for Drilling and Screwing at 90° Angle

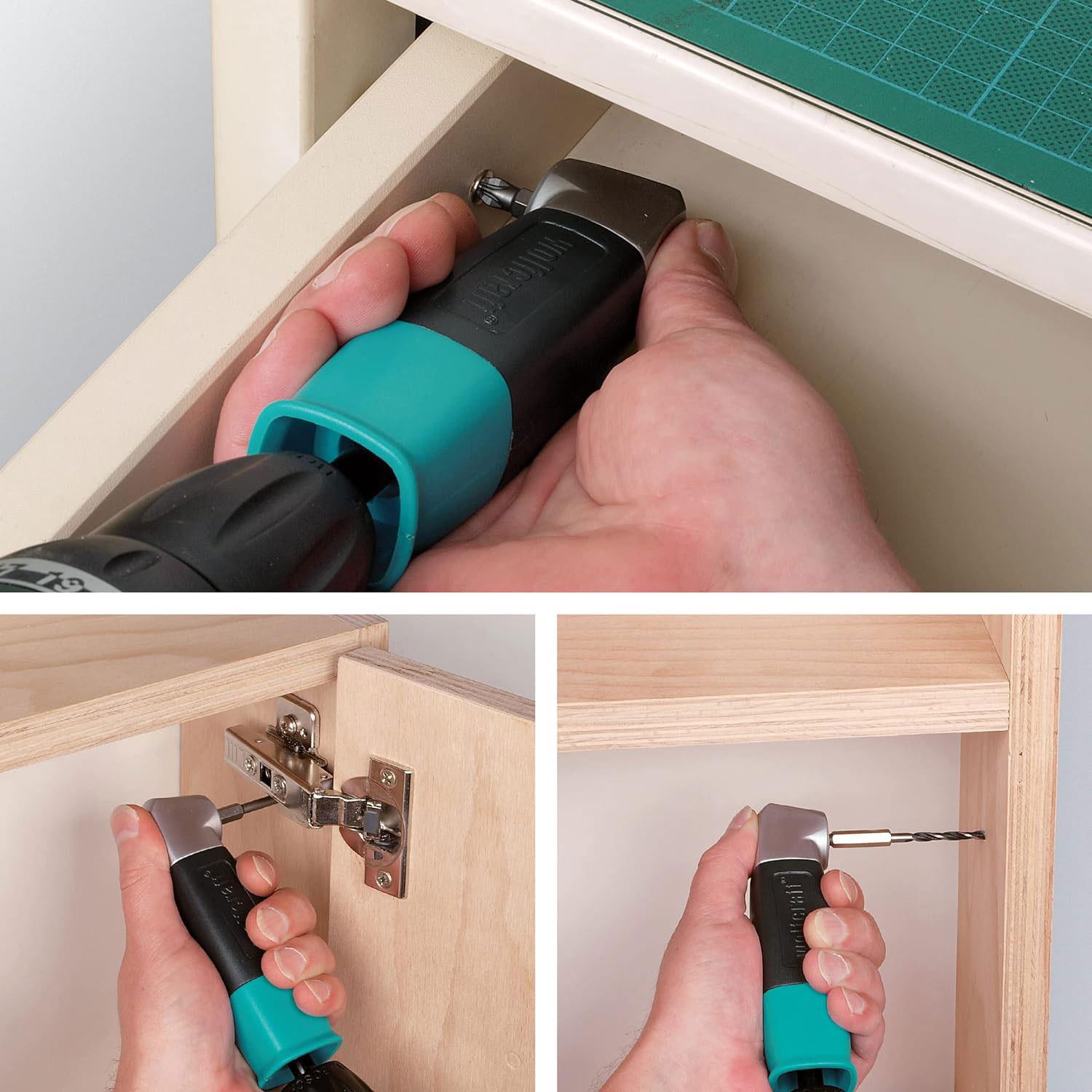

The angular gear is an indispensable drilling and screwing tool for anyone who wants to do high-precision work, even in tight spaces. Thanks to its compact design with a corner dimension of only 52 mm (incl. 25 mm bit), the angular gear is very easy to handle and enables accurate work in tight spaces. The magnetic ¼" hexagon socket enables quick tool changes. The gear with ball bearing ensures smooth right/left rotation for tightening and loosening. The angular gear is a practical aid for drilling and screwing at a 90° angle.
hexagon ¼" drive (ISO 1173 shank – E 6.3), magnetic hexagon ¼" receptacle
52 mm corner dimension (including 25 mm bit), right/left rotation
gear with ball-bearing
Properties
¼" hexagon drive ( ISO 1173 shank – E 6.3) for a secure fit in drill chuck
magnetic ¼" hexagon socket for quick tool changes
small and compact with a corner dimension of only 52 mm (including 25 mm bit) design lets you drill and screw in the smallest of spaces
right/left rotation for tightening and loosening
gear with ball bearing for smooth running

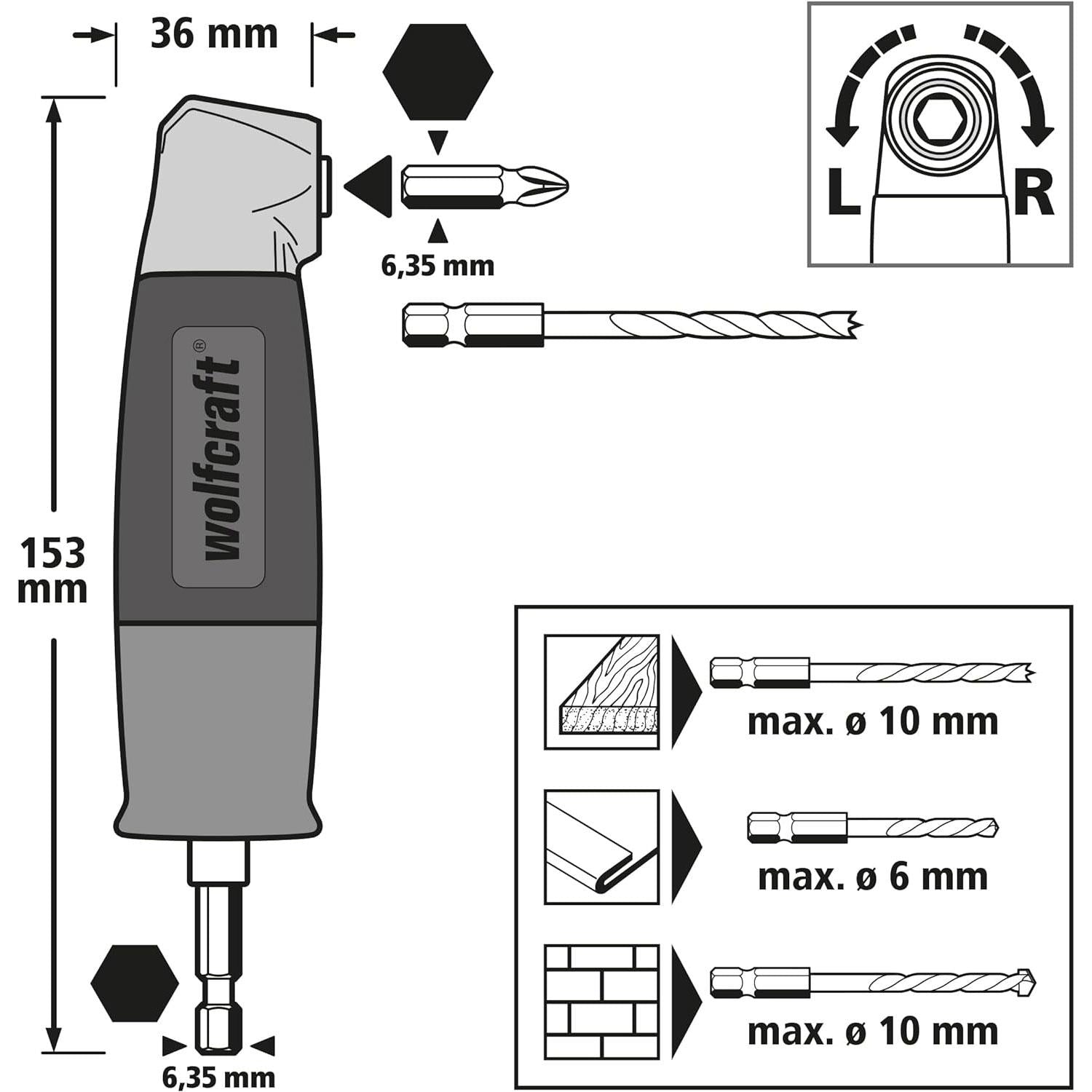

Technical Data:
Receptacle for screwdriver insert: 6.35 mm (¼") hexagon socket
Product length (depth): 153 mm
Shank version: Hexagon shank A/F 6.35 mm (¼")
The direction of rotation: Clockwise/anti-clockwise rotation
Torque, max.: 13
Speed of rotation, max.: 400 RPM
Additional product specification: gear with ball-bearing
Tool area: for wood and rock drill bits up to max. Ø 10 mm, for metal drill bits up to max. Ø 6 mm
Box Contains: wolfcraft Angular Gear
